101 Series Floor Expansion Joint Covers

Options & Pricing

Description

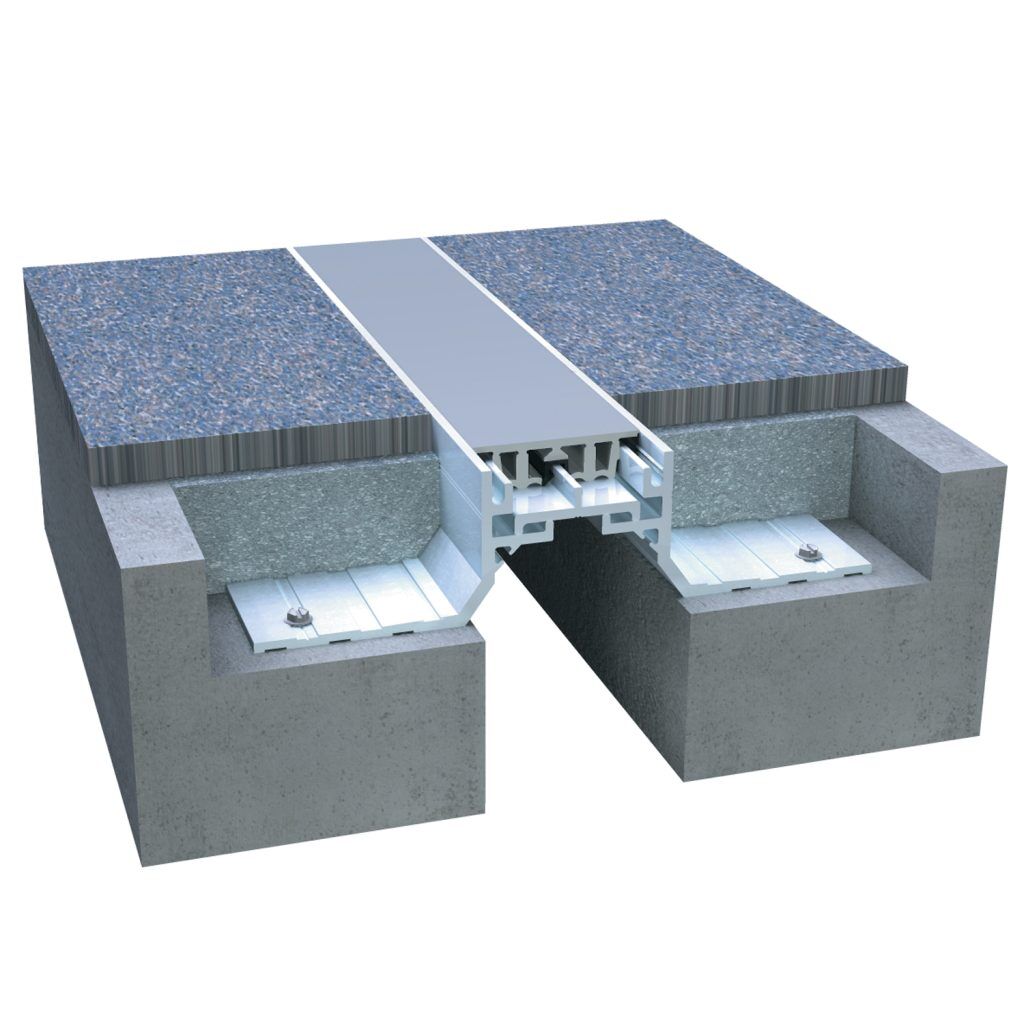

The 101 System is a recessed mount floor expansion joint system. It features a single sightline of our GreenGuard Certified Santoprene® seal which can coordinate with your desired flooring finish.

Install Condition: Floor/Floor, Floor/Wall
Movement: +/- 25%
Joint width: 25mm – 75mm
Load Capability: Standard

Specifications + Downloads

Specifications

Data Sheet

Spec – 101 Series Floor Expansion Joint Covers PDF

Drawing

101-2538 – Drawing – Floor to Floor

101-2538 – Drawing – Floor to Wall

101-3838 – Drawing – Floor to Floor

101-3838 – Drawing – Floor to Wall

101- 5038 – Drawing – Floor to Floor

101- 5038 – Drawing – Floor to Wall

101-7538 – Drawing – Floor to Floor

101-7538 – Drawing – Floor to Wall

applications

Install Condition: Floor/Floor, Floor/Wall

Features

Dual durometer seal provides secure fit and optimal flexibility
Recessed modular frames for minimal sight line
Adaptable to many finishes, including ceramic tile, marble, stone, vinyl, tile and carpet
Seamlessly integrates with the following wall and ceiling systems: 101,104,112,113,118 A07/A09
Easy to clean flush seals
No dirt or water traps
Snap-fit design for easy on site assembly
Mill finish aluminium
Integral vapor barrier option available
Optional 2hr (120 mins) fire rated
