Wall & Ceiling Systems
Product Description

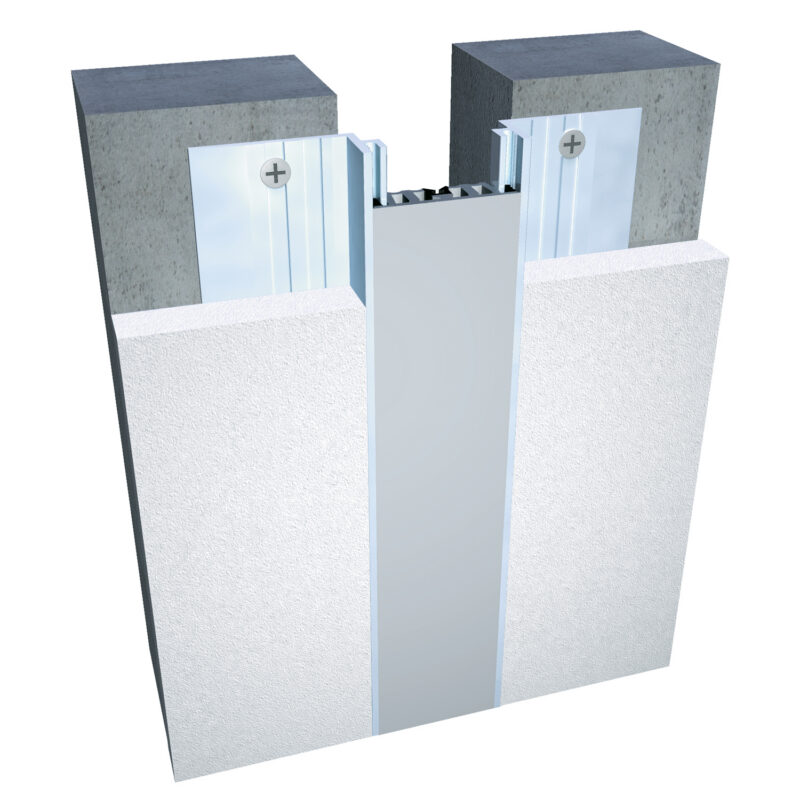

The 101 recess wall + ceiling expansion joint system features a single seal that comes in a variety of colors to coordinate with your wall finish. The 101 is adaptable to any 16mm wall and ceiling finish.
- Install Condition: Wall/Wall, Wall/Corner
- Movement: +/- 25%
- Joint width: 25mm – 75mm
- Load Capability: Standard
Benefits
- Dual durometer seal provides secure fit and optimal flexibility
- Seals absorb limited serviceable seismic movement
- Recessed mount frames for minimal sightline
- Snap-on design for easy on-site assembly
- Easy to clean flush seals
- Minimises sightlines at corners
- Mill finish aluminium
- Optional vapor barrier
- Optional 2hr (120 mins) fire rated
Application
- Install Condition: Wall/Wall, Wall/Corner
Downloads
-
Data Sheet:
-
Installation Instructions:
-
Drawing:
101-025 Drawing – Wall to Corner and Wall to Ceiling
101-025 Drawing – Wall to Wall and Ceiling to Ceiling101-038 Drawing – Wall to Corner and Wall to Ceiling
101-038 Drawing – Wall to Wall and Ceiling to Ceiling101-050 Drawing – Wall to Corner and Wall to Ceiling
101-050 Drawing – Wall to Wall and Ceiling to Ceiling101-075 Drawing – Wall to Corner and Wall to Ceiling
101-075 Drawing – Wall to Wall and Ceiling to Ceiling
