651 Horizontal Exterior Expansion Joints

SKU: 651-A01/A02

Product Description

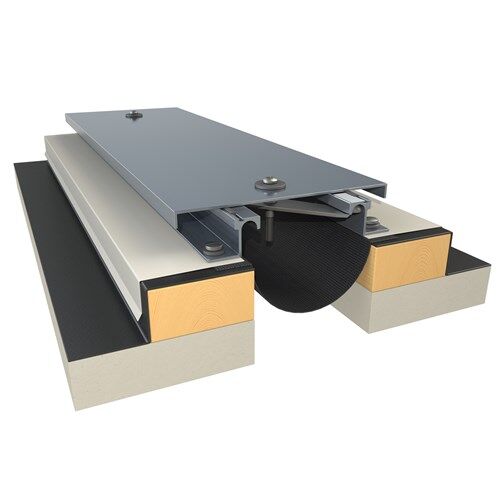

The 651 exterior roof expansion joint system is capable of multi-directional seismic movement and can accommodate uneven joint widths with its surface mount design.

Install Condition: Roof/Roof, Roof/Wall
Movement: +/- 50, +/- 100%
Joint width: 25mm – 405mm
EPDM included
Optional 2hr (120 min) fire rated
Moisture barrier included
Factory formed transitions available
Plate available in stainless steel

Benefits

Sheer movement unlimited
Easy on site assembly
Neoprene weather washers prevent leaking where fasteners penetrate frames/covers

Application

Install Condition: Roof/Roof, Roof/Wall

Downloads

Data Sheet:

Spec – 651 Horizontal Exterior Expansion Joints
