Floor Systems
Product Description

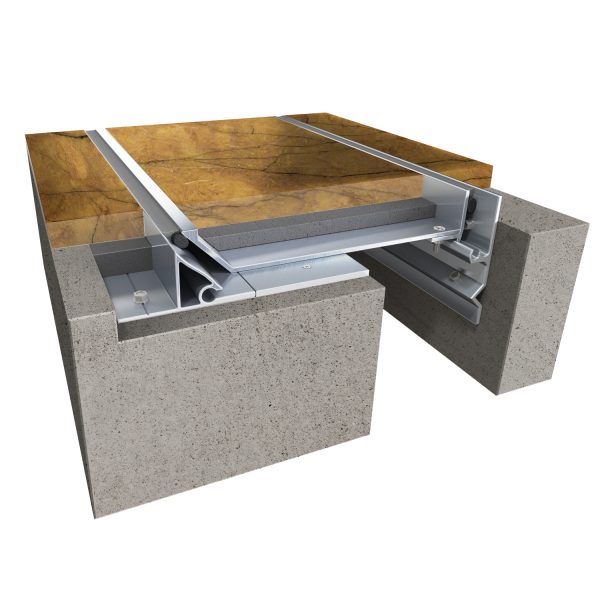

Pan profile provides a vertical surface to abut tile against, eliminating the need to bevel flooring edges for flooring up to 10mm. Deep pan ideal for floor finishes with increased depths such as marble, granite, limestone and paver systems. Hinged pan rides up the canted frame under seismic movement then returns to position to maintain egress routes.
- Install Condition: Floor/Floor, Floor/Wall
- Movement: +/- 50%
- Joint width: 50mm – 200mm
- Load Capability: Heavy Load
- Optional vapor barrier
- Optional 2hr (120 min) fire rated
Benefits
- System provides for unlimited lateral movement
- Symmetrical reveals align Floor-to-Floor and Floor-to-Wall applications
- Narrow visual sightlines minimize aesthetic disruption to your space
- Use sealant that matches the adjacent floor finish to further conceal the sightline reveals
Application
- Install Condition: Floor/Floor, Floor/Wall
Downloads
-
Data Sheet:
PRODUCTS
Recommended Products
Expansion Joint Systems

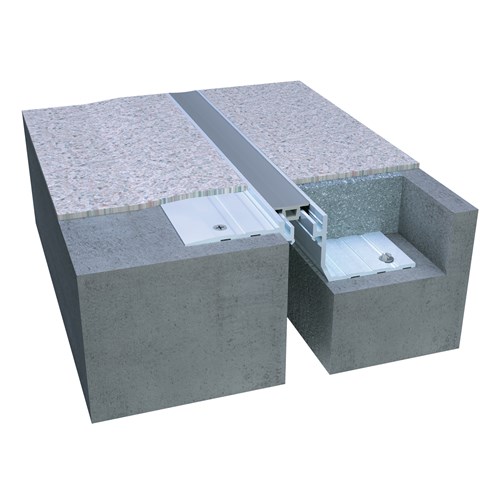

110 Series VCT Expansion Joint Systems
