Floor Systems
Product Description
A pan system with narrow sightlines that minimize aesthetic disruption to flooring finishes. A 16mm deep pan that is ideal for shallow flooring finishes.
- Floor to Floor/ Floor to Wall
- Movement: +/- 50% movement
- Joint Width: 100mm-600mm
- Optional Vapor Barrier
- Optional 2 hr (120 min) Fire Rated
Benefits
- 16mm deep pan ideal for floor finishes with shallow depth such as VCT, sheet vinyl, carpet and other ceramic tile.
- Shallow blockout depth to help prevent interference with slab rebar, system also compatible with topping slab construction.
- Designed for generous thermal and seismic movement requirements.
- Pan profile provides a vertical surface to abut 9 mm thick flooring against, eliminating the need to bevel flooring edges.
- The combined use of centerbars and tapered frame components resets the pan after seismic movement.
- System can be modified to meet any movement needs up to 100%.
- Pan assembly can be modified to meet heavier loading capabilities.
- System can be modified to include stainless steel caps over the flat seals for rolling loads.
- All flat seals are GREENGUARD Gold certified and provide the following qualities:
- Seals are flush with flooring, easy to clean, and prevent dirt and water traps common with most pan systems.
- Seals provide superior thermal movement as compared to any sealant on the market, and drastically reduce facility maintenance costs by eliminating backer rod and sealant systems.
- Seal is offered in 5 standard colors to match adjacent flooring (Custom Colors Available)
Application
- Floor to Floor/ Floor to Wall
Downloads
-
Data Sheet:
PRODUCTS
Recommended Products
Expansion Joint Systems
1200 Series Foam Seal
Expansion Joint Systems

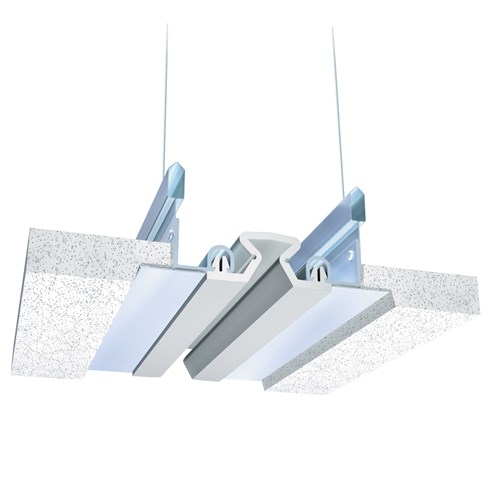

115 Series Acoustical Ceiling Expansion Joint Systems
