Foam Seals

Name: 1100 Series Foam Seal | Acculine
SKU: 1100-FS

Products /Expansion Joint Systems /Foam Seals /1100 Series Foam Seal

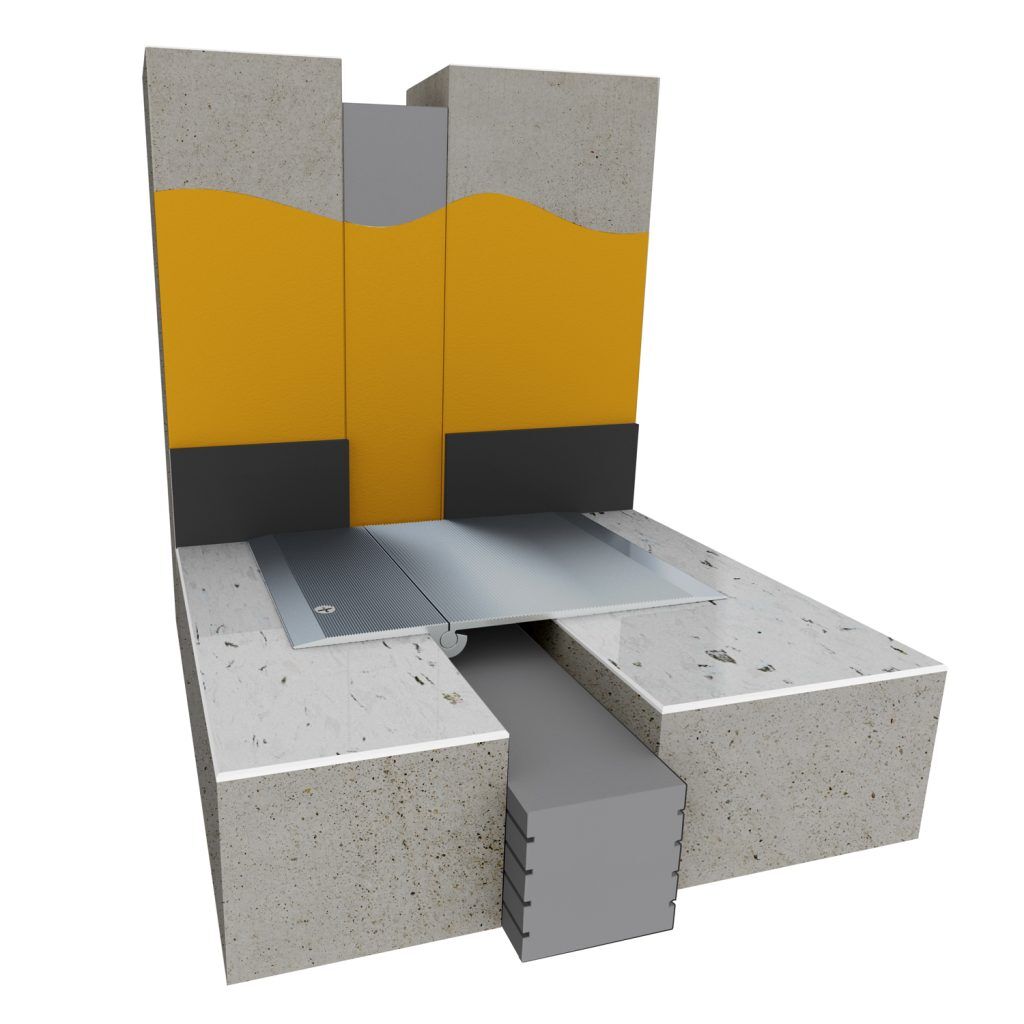

1100 Series Foam Seal

SKU: 1100-FS

Product Description

The 1100 series foam seal provides a 100% watertight seal. This system is excellent for roof applications and installation under metal cover plates. Its ridged sides trap and pool epoxy providing superior adhesion to the joint surface and a water tight seal.

Coverplate Not Included.

Install Condition: Floor/Floor, Wall to Wall, Floor/Corner, Wall/Corner
Movement: 50% Tension, 50% Compression, 100% Shear movement
Joint width: 25mm – 305mm

Benefits

Optional 2hr (120 min) fire rated
High heat, weather and UV resistant

Application

Install Condition: Floor/Floor, Wall to Wall, Floor/Corner, Wall/Corner

Downloads

Data Sheet:

Spec – 1100 Series Foam Seal
Drawing:

1100 Series Foam Seal – Ceiling to Ceiling

1100 Series Foam Seal – Floor to Floor – Drawing

1100 Series Foam Seal -Wall to Wall – Drawing
