Floor Systems
Product Description
The 501 floor expansion joint system is pan system designed for generous thermal and seismic movement requirements and narrow sight lines that minimise aesthetic disruption to flooring finishes.
- Install Condition: Floor/Floor, Floor/Wall
- Movement: +/- 50% (Modifiable up to +/- 100%)
- Joint Width: 50mm-600mm
- Load Capability: Heavy Load
- Optional vapor barrier
- Optional 2 hr (120 min) fire rated
Benefits
- 46mm deep pan ideal for floor finishes with increased depth such as marble, granite, limestone and paver systems.
- Pan profile provides a vertical surface to abut 9 mm thick tile against, eliminating the need to bevel flooring edges.
- The combined use of center bars and tapered frame components resets the pan after seismic movement.
- Seals are flush with flooring, easy to clean, and prevent dirt and water traps.
- All flat seals are GREENGUARD Gold certified and provide the following qualities:
- Seals are flush with flooring, easy to clean, and prevent dirt and water traps.
- Common with most pan systems.
- Seals provide superior thermal movement as compared to any sealant on the market, and drastically reduce facility maintenance costs by eliminating backer rod and sealant systems.
- Seal is offered in 5 standard colors to match adjacent flooring (Custom Colors Available)
Application
- Install Condition: Floor/Floor, Floor/Wall
Downloads
-
Data Sheet:
PRODUCTS
Recommended Products
Expansion Joint Systems

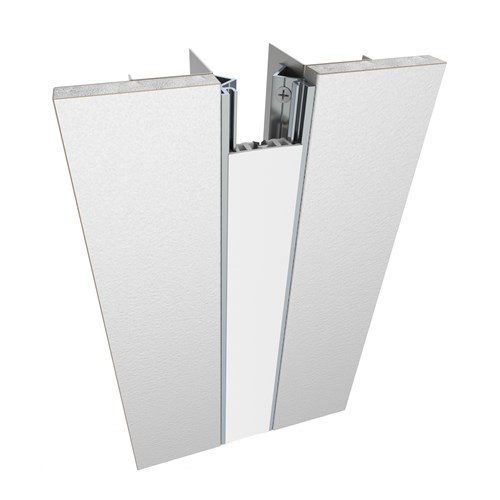

118 Series Expansion Joint Systems
Expansion Joint Systems
1150 Series Foam Seal
Expansion Joint Systems

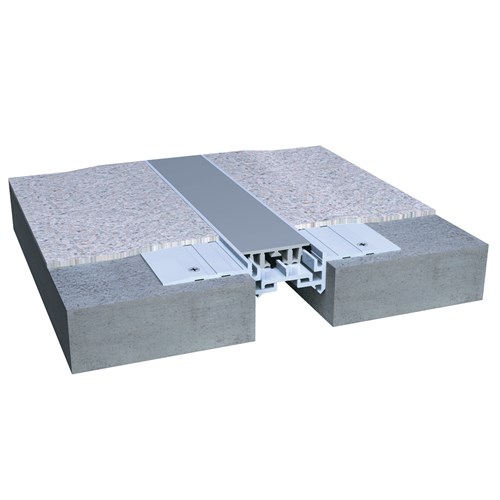

105 Series Sheet Vinyl Floor Expansion Joint Covers
