Floor Systems
Product Description

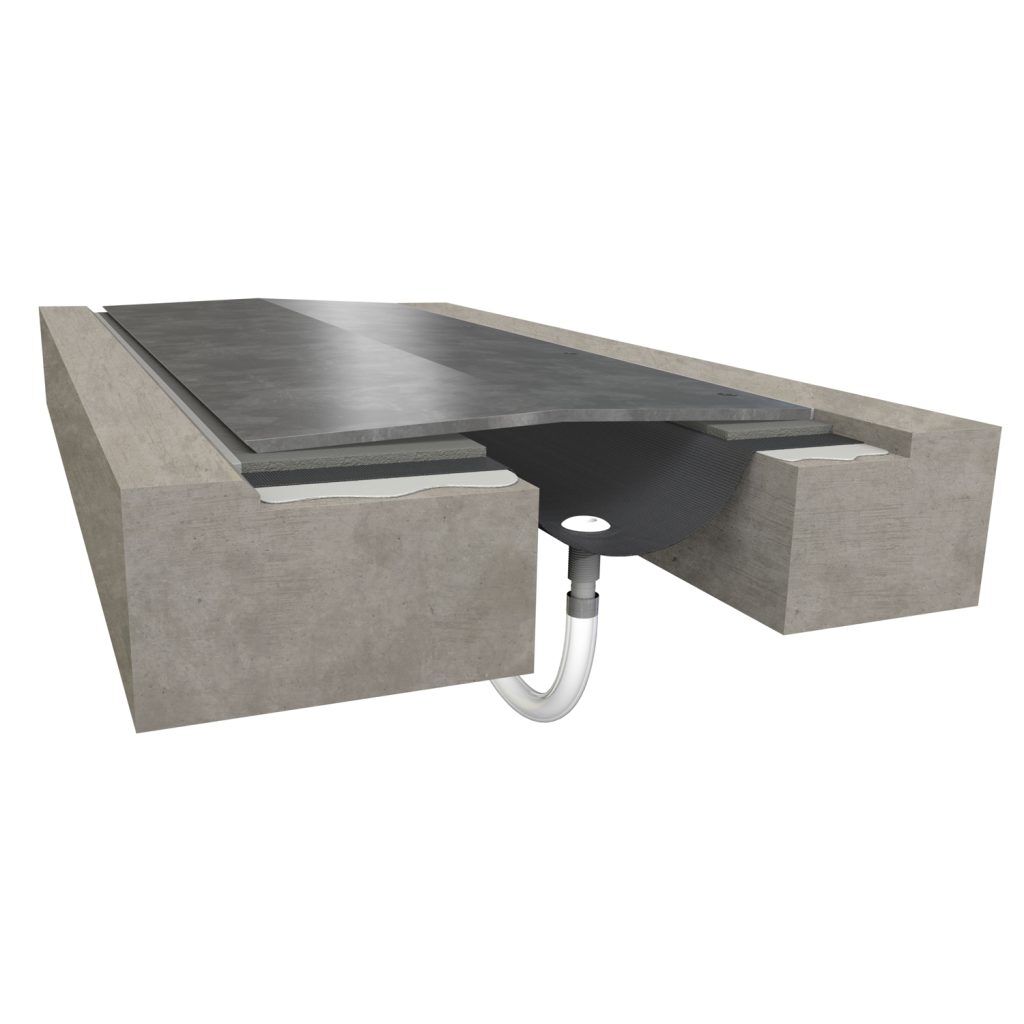

The 797 surface mount floor expansion joint system is designed to meet the needs of structures open to the elements and vehicular loading. This heavy duty system uses a thick, high strength plate and crowned profile for increased load resistance.
- Install Condition: Floor to Floor
- Movement: +/- 50%
- Joint width: 150mm – 610mm
- Optional Vapor Barrier
- Optional 2 hr (120 min) Fire Rated
- Load Capability: Galvanised A36 steel and optional Stainless Steel plates meets stringent loading needs
Benefits
- Plates are compliant with ADA requirements, and allows for a smooth transition over the joint.
- Galvanised A36 steel and optional Stainless Steel plates meets stringent loading needs.
- Shallow blockout ensures no interference with the rebar / cabling structure.
- Slip resistant finish in optimal on cover plates.
- High durometer EPDM pads absorb traffic vibrations and act as a noise dampening device.
- Movement options for up to ±100% available.
Application
- Install Condition: Floor to Floor
Downloads
- Data Sheet:
