Exterior Systems
Product Description

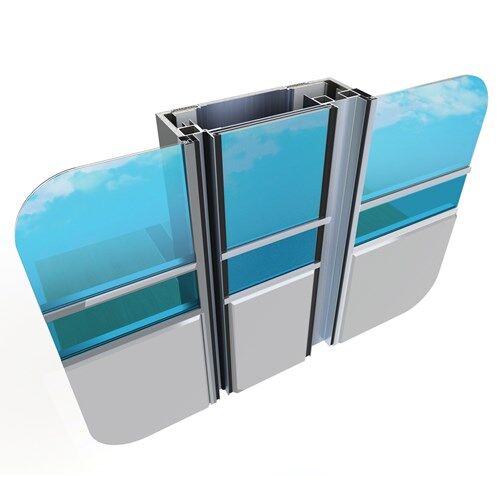

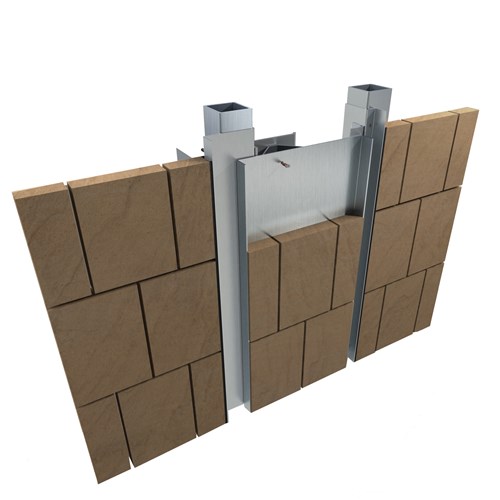

The 601 hinged wall expansion joint system can be infilled with adjecent architectural system to disguise the exterior expansion joint such as glazing, metal panels, stone, brick and more.
- Install Condition: Wall/Wall, Wall/Corner
- Movement: +/- 50%
- Joint width: 255mm – 760mm
- Seismic-capable
- Optional 2 hr (120 min) fire rated
- Optional insulated vapor barrier
- Ideal system for use on high-end exterior systems or conditions where the structural joint is located in a high profile position on the building veneer
- Two levels of system complexity available
Benefits
- Shear movement unlimited
- Flush mounted exterior system reduces sightline to two reveals or approximately 25mm and 75mm dimensions
- System is seismic capable while allowing for daily thermal movement and wind sway considerations

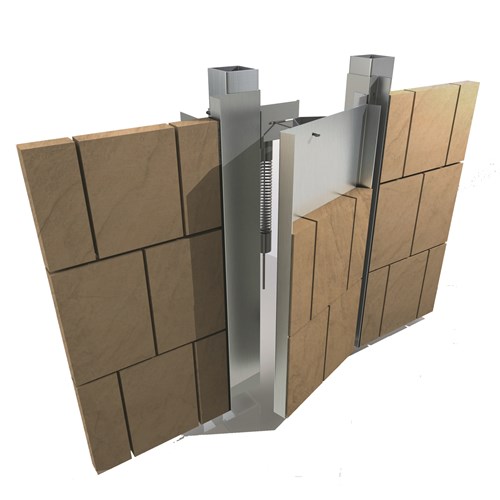

- Compression springs correctly reposition the pan to the nominal position after a system movement
- Reinforced insulated vapor systems capable of R-15 rating available
Application
- Install Condition: Wall/Wall, Wall/Corner
