Wall & Ceiling Systems
Product Description

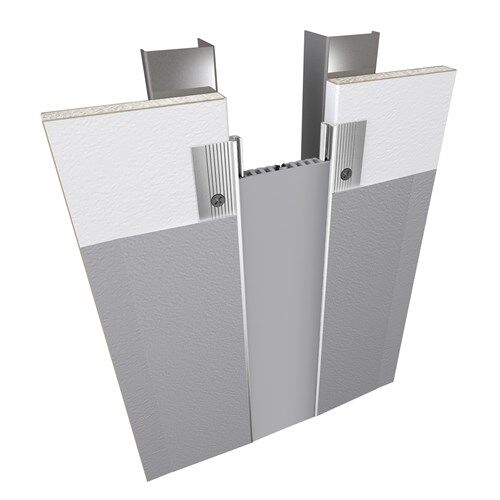

The 113 recess mount, wall + ceiling expansion joint system has an extremely minimal sightline and is designed for 16mm drywall applications.
- Install Condition: Wall/Wall, Ceiling/Ceiling, Wall/Ceiling, Wall/Corner
- Movement: +/- 25%
- Joint width: 25mm – 75mm
- Load Capability: Standard
Benefits
- Extremely minimal sightline
- Dual durometer seal provides secure fit and optimal flexibility
- Designed for 16mm drywall installations
- Finish with plaster joint compound or wall covering
- Easy to clean flush seals
- Snap-fit design for easy on-site assembly
Application
- Install Condition: Wall/Wall, Ceiling/Ceiling, Wall/Ceiling, Wall/Corner
Downloads
-
Data Sheet:
-
Installation Instructions:
-
Drawing:
113-025 Drawing – Wall to Corner and Wall to Ceiling
113-025 Drawing – Wall to Wall and Ceiling to Ceiling113-038 Drawing – Wall to Corner and Wall to Ceiling
113-038 Drawing – Wall to Wall and Ceiling to Ceiling113-050 Drawing – Wall to Corner and Wall to Ceiling
113-050 Drawing – Wall to Wall and Ceiling to Ceiling113-075 Drawing – Wall to Corner and Wall to Ceiling
113-075 Drawing – Wall to Wall and Ceiling to Ceiling
