IPC® • 2020
Master Format® Divisions: 08 | 09 | 10 | 12

They're not just

Door + Wall

Protection System.

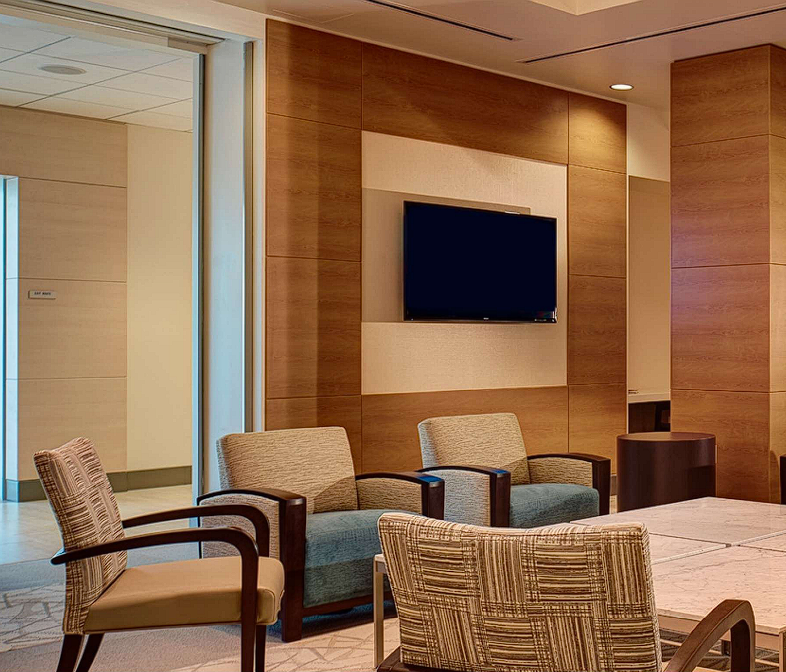

why us?

Our foundation was built on Door and Wall protection – so we know the industry inside and out. Our in house experts are here to guide you through the selection process so you’re sure to get the right products for your next project.

unmatched

protection

When it comes to wall protection, we believe in giving you options for material choices. We’ll never sacrifice durability. Our products are designed to stand the test of time.

low maintenance

saving you time and money

Our products may look high maintenance … but don’t let good looks fool you. Our products are long lasting and easy to clean, saving you time and money on maintenance and repairs.

design

forward

We’re always adding new designs, colors and finishes to our product portfolio. Visit our Design Center for new ideas and inspiration to refresh your space!

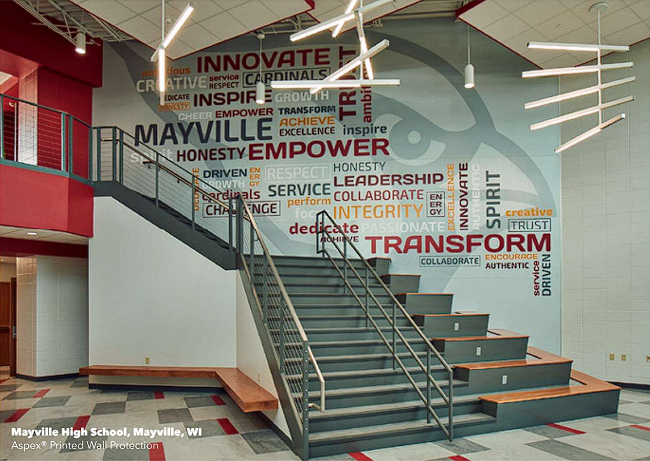

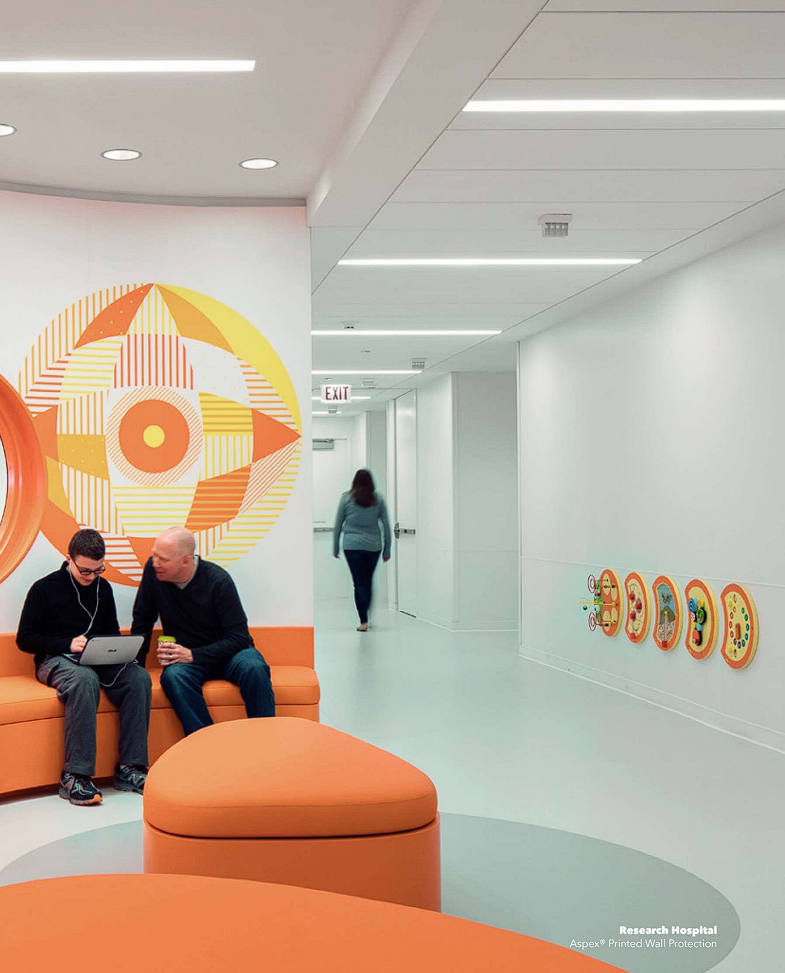

aspex® printed wall protection

Aspex®

Printed Wall Protection

Your Image. Your branding. Your statement. Aspex® Printed Wall Protection gives you total design freedom while protecting your walls from the toughest damage at the same time.

  • Material: PETG
  • Thickness: .040* (1mm)
  • Supplied in 4′ (1.22m) x 10′ (3.05m) sheets
  • Install with clear caulk at the seams to eliminate need for trim pieces.

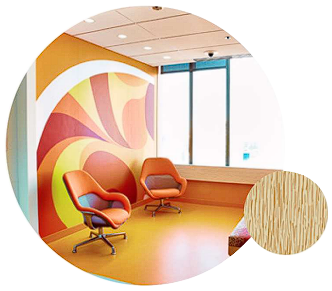

vivid

Because your graphic is back-printed onto clear sheet, your image is vivid and won’t get scratched over time.

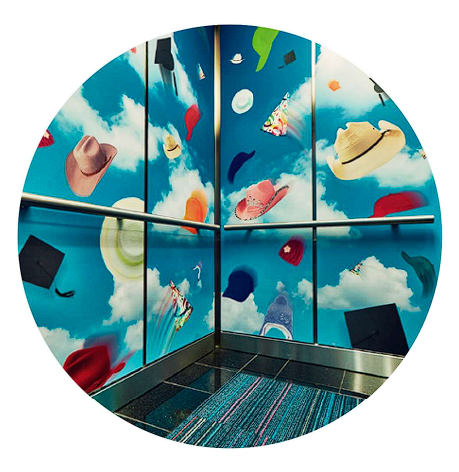

versatile

Use Aspex® to cover your walls or incorporate it into your elevator interiors. It can even be made into wall panels.

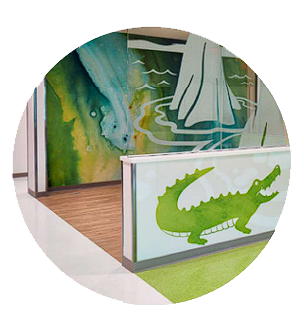

customizable

You select the image*, we bring it to life, Use custom artwork or choose from one of our predesigned patterns.

*You must have the legal right to use any image you would like to have printed. we respects the intellectual property rights of others and reserves the right to request verification of any image submitted for print.

Aspex®

Pre-Designed Patterns

Interstellar

Aquamarine | A008

Inkling

Blue Grey | A003

Bloom

Blue Grey | A028

Cashmere | A007

Persimmon | A009

Cashmere | A002

Persimmon | A004

Cashmere | A027

Persimmon | A029

Light Gray | A006

Soft Green | A010

Light Gray | A001

Soft Green | A005

Light Gray | A026

Soft Green | A030

Drift

Blue Grey | A013

Prairie

Blue Grey | A023

Entwine

Aquamarine | A019

Cashmere | A012

Persimmon | A014

Cashmere | A022

Persimmon | A024

Cashmere | A017

Blue Grey | A018

Light Gray | A011

Soft Green | A015

Cashmere | A002

Persimmon | A004

Cashmere | A027

Persimmon | A029

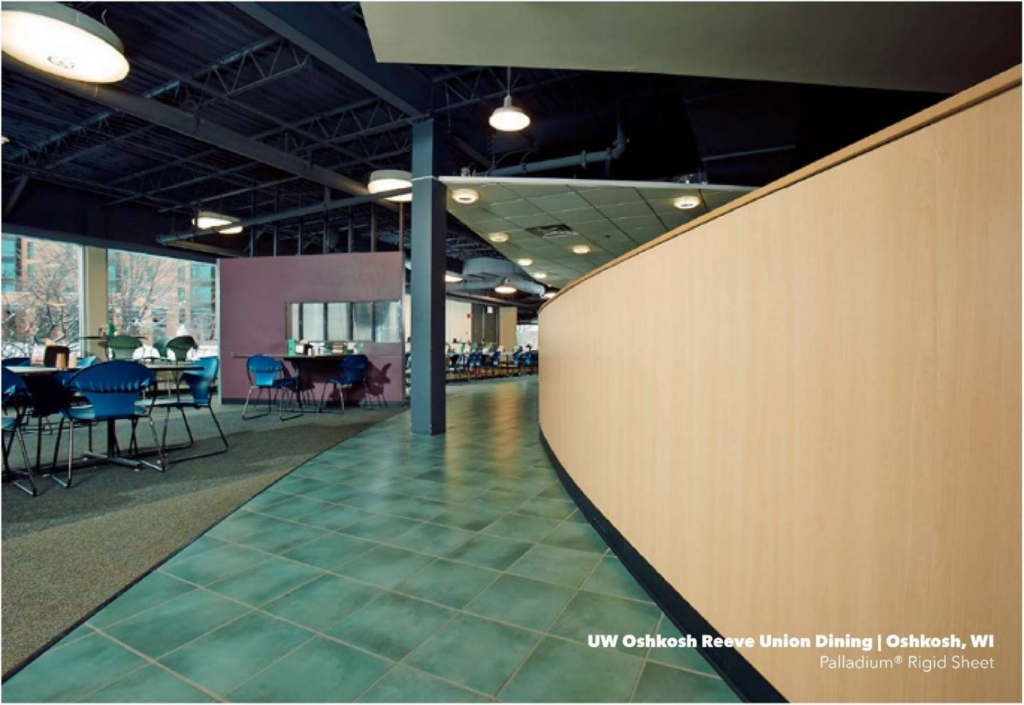

Palladium®

Rigid Sheet Wall Protection

Given your walls a fighting with Palladium® Rigid Sheet Wall Protection. Palladium® provides superior impact resistance to keep your walls safe from damage, so you can sa goodbye to endless repairs!

features

  • Available thicknesses: .040″, .060″ (1.01mm, 1.5mm)
  • Available in 4′ x 8′ (1.22mm x 2.4m) or 4′ x 10′ (1.22m x 3.04m) sheets or as custom heights, lengths and rolls
  • Variety of trim accessories and color matched pick-resistant caulk available
  • Low maintenance

color options

  • Standard Solid Colors
  • Elements Patterns
  • Woodlands Faux Wood Patterns

material options

Rigid Vinyl

Manufactured from PVC, Rigid Vinyl is built to withstand the toughest environments.

  • Most durable, cost-effective solution
  • Lowest Fossil Fuel Consumption of Polymers, in Manufacturing
  • No Phthalates
  • No BPA
  • Class A Fire Rated
  • GREENGUARD Gold Certified

G2 BioBlend®

G2 BioBlend® is a breakthrough in sustainability. engineered using a biopolymer blend of PETG and bio-based content.

  • Durable, PVC-free solution
  • Prop 65 Complaint
  • No Phthalates
  • No BPA
  • Class A Fire Rated
  • GREENGUARD Gold Certified

Sheet Options

Palladium* Rigid Sheet Solid Colors

Part Numbers:

305* – .040″ Thick, 3‘ x 8′ 306*-.060″ Thick, 3’x 8′
405 – .040″ Thick, 4′ x 8′ (Standard Size)
406 – .060″ Thick, 4′ x 8′ (Standard Size) 30510*-.040″ Thick, 3’x 10’
30610*-.060″ Thick, 3’x 10’ 40510*-.040″ Thick, 4’x 10* 40610*-.060″ Thick, 4’x 10’ *Non-standard set up, minimums apply.

NOTE: Add prefix “G2” to part number for G2 BioBlend®.

Palladium* Beadboard

Full Wainscot Part Numbers:
BB405FW – .040″ Thick, 94″ W x 471/2″ H BB406FW – .060″ Thick, 94″ W x 471/2″ H

Half Wainscot Part Numbers:
BB405HW – .040″ Thick, 44″ W x 47’/2″ H BB406HW – .060″ Thick, 44″ Wx 471/2″ H
Floor to Ceiling Wainscot Part Numbers:
BB405FC – .040″ Thick, 44″ W x 94″ H BB406FC – .060″ Thick, 44″ W x 94″ H

NOTE: Beadboard is a custom product and not returnable.

Palladium* Rigid Sheet – Woodlands™ Faux-Wood Patterns

Part Numbers:

405W- .040″ Thick, 4′ x 8′ (Standard Size) 406W – .060″ Thick, 4′ x 81 (Standard Size) 40510W*- .040″ Thick, 4’x 10′
40610W* – .060″ Thick, 4′ x 10′ *Non-standard set up, minimums apply.

NOTE: Add prefix “G2” to part number for G2 BioBlend®.

Palladium* Rigid Sheet – Elements™ Patterns


Part Numbers:

405E – .040″ Thick, 4′ x 8′ (Standard Size) 406E – .060″ Thick, 4′ x 8′ (Standard Size) 40510E* – .040″ Thick, 4’x 10′
40610E*-.060″ Thick, 4’x 10′

*Non-standard set up, minimums apply.

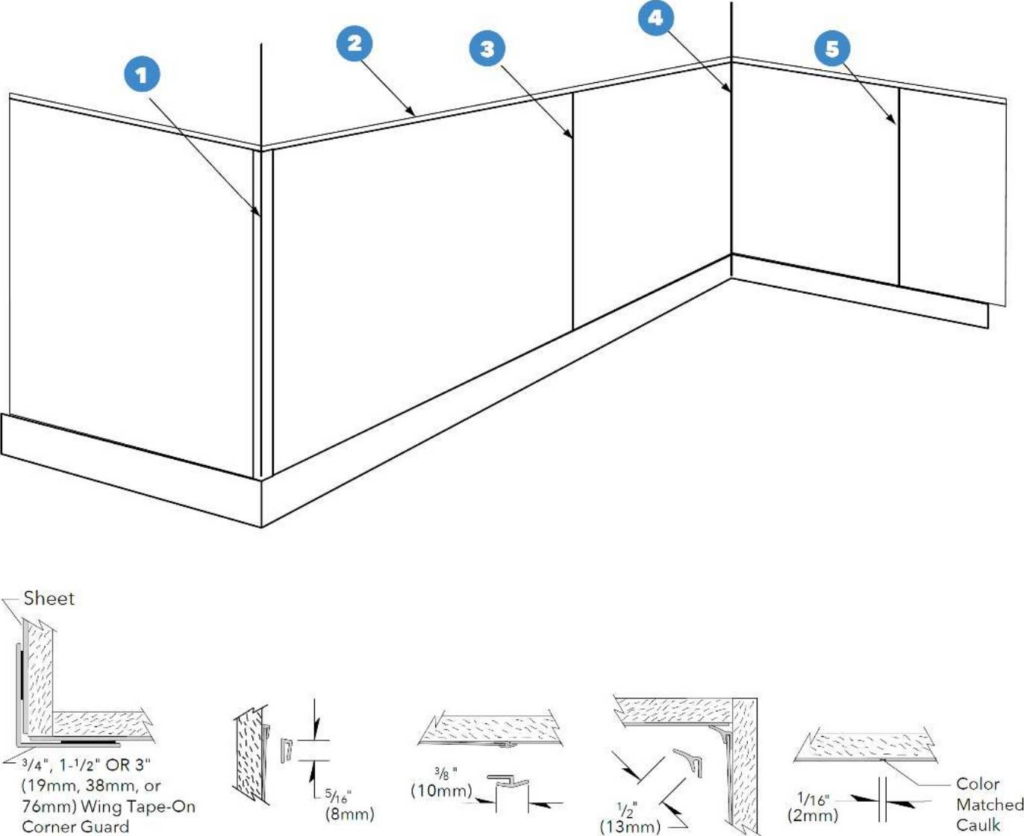

Trim Options

  • Outside Corner/ Corner Guard
  • Top Cap
  • Vertical Divider Bar
  • Inside Corner
  • Butt Joint (optional)

Solid Color Trim
Material: Rigid Vinyl or G2 BioBlend® Part Numbers:
407 – Top Cap, 8′ length
408 – Vertical Divider Bar, 8′ length
409 – Inside Corner, 8′ length
NOTE: Add prefix “G2” to part number for G2 BioBlend®. 10′ trim also available.

Stainless Steel Trim
Part Numbers:
DW-SSTC08 – Top Cap, 8′ length DW-SSDB08 – Vertical Divider Bar, 8′ length
NOTE: 10′ trim also available.

Aluminum Trim
Part Numbers:
407A-CL-Top Cap, 8′ length
408A-CL – Vertical Divider Bar, 8′ length
409A-CL- Inside Corner, 8′ length
420A-CL- Outside Corner, 8′ length
NOTE: Available in Clear Anodized Satin Finish. 10′ trim also available.

Faux Metal Trim
Part Numbers:
407M-0369 – Top Cap, 8′ length
408M-0369 – Vertical Divider Bar, 8′ length 409M-0369 – Inside Corner, 8′ length
NOTE: Available in Bright Silver Rigid Vinyl only. 10′ trim also available.


Color-Matched Caulk also available. 585 – Color-Matched Caulk

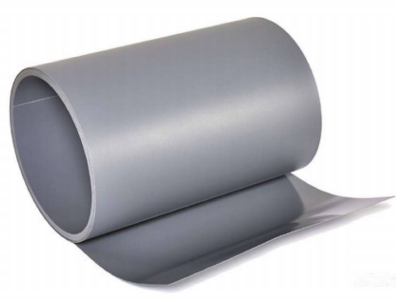

Rolled Sheet

Durability + convenience all rolled into one.
Minimize the number of seams on your wall with Rolled Palladium® Rigid Sheet.

features


• Minimize seams
Maximum roll length: 120′ (36.8m) in .040″ (1.01 mm) sheet
or 80′ (24.4m) in .060″ (1.5mm) sheet
• Reduce on-site cutting + waste with rolls manufactured to exact wainscot height
• Convenient packaging makes onsite handling and storage easier

Rolled Sheet is a custom product and not returnable.
Not available in G2 BioBlend®
